I. Product Overview

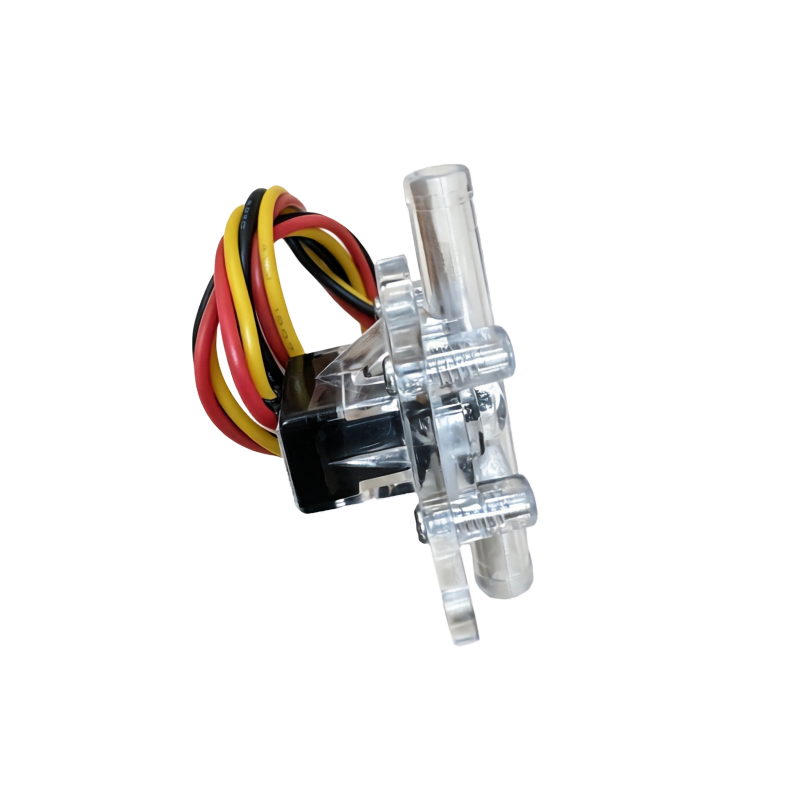

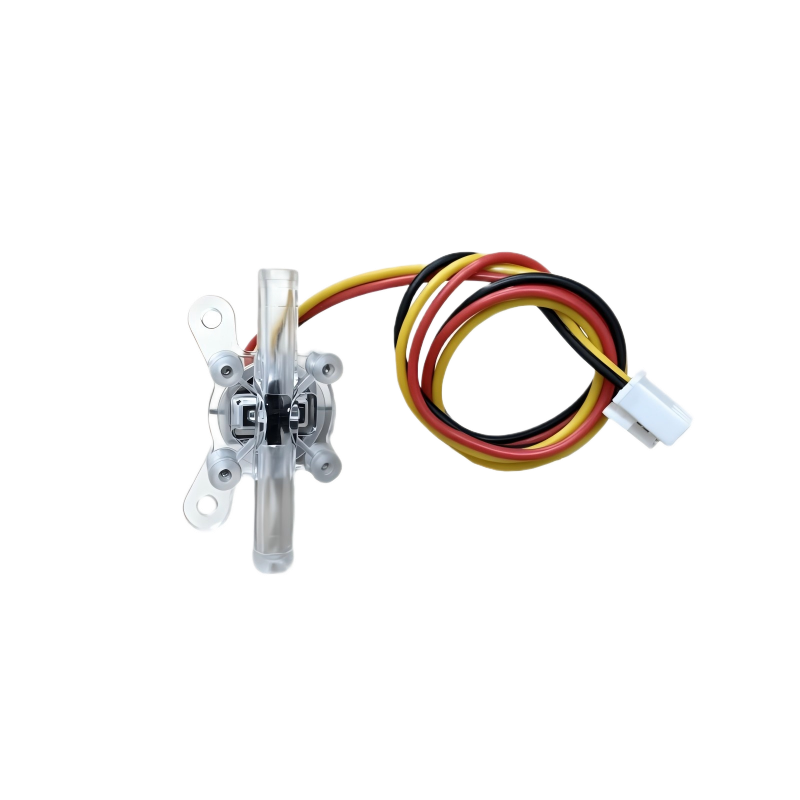

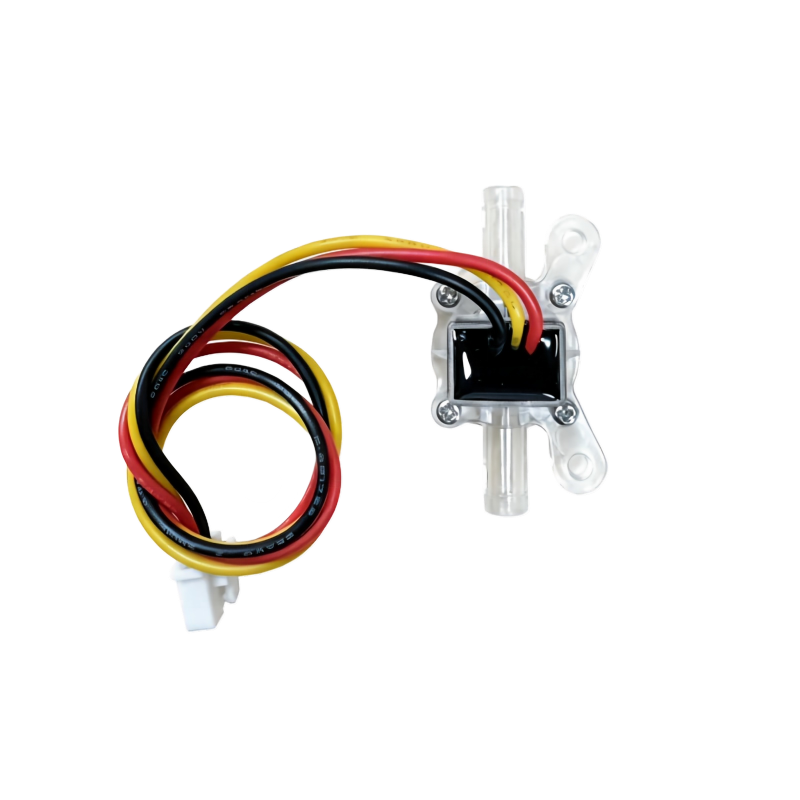

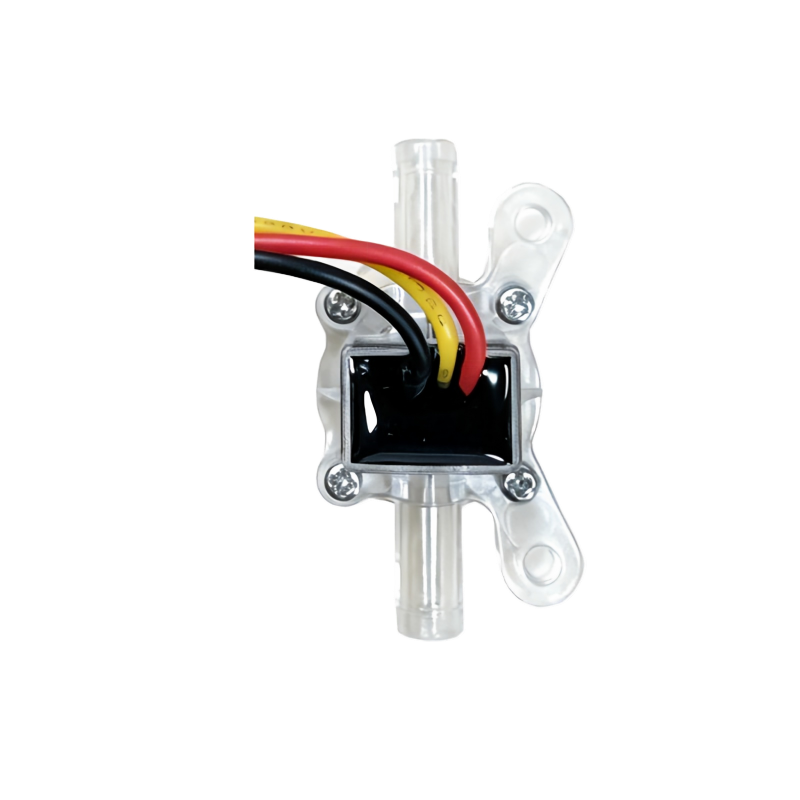

The BAT-G06C photoelectric flow sensor uses optical principles, outputting pulse signals by cutting the light path through the rotation of an internal impeller. It features high precision, high reliability, and long lifespan. The product has a compact structure, is easy to install, and its housing is made of high-quality materials, capable of withstanding high temperatures and pressures. It is widely applicable for flow monitoring and control of various household and industrial fluids.
II. Core Features
- Precise measurement:accurate flow detection and stable pulse output.
- High protection and durability:pressure resistant and waterproof, high temperature resistant (anti-icing/anti-frost), energy-saving and environmentally friendly.
- High reliability:Stable internal structure and long lifespan.
- Suitable for a variety of media:applicable to monitoring and control of a variety of fluids.
III. Application Scenarios
- water purifier
- water dispenser
- coffee machine
- humidifier
- dishwasher
- water heater
- Other automated equipment that requires traffic monitoring
IV. Specifications
| Parameter name | Parameter value / condition |
| Connector specifications | C3B-3P White Plug – 3P*260 (Cable length can be customized) |
| Wiring method | Red: Connect to power (+); Black: Connect to power (-); Yellow: Signal output |
| Water pressure resistance | ≤ 1.0 MPa |
| Pulse characteristics | [158*Q] ±5% (Q = L/MIN) |
| Working flow range | 0.2 ~ 1.5 L/MIN |
| Insulation resistance | ≥ 100 MΩ |
| Operating voltage | 5 ~ 24 VDC |
| Operating current | ≤ 20 mA |
| Operating temperature range | ≤ 85℃ (No freezing/no frost) |
| Output signal (DC 5V) | Output pulse high level: > DC 4.5V
Output pulse low level: < DC 0.5V |
| Service life | VCC=DC5V, no abnormalities observed after 100,000 switching cycles. |
V. Flow rate and pulse characteristic data table
Instantaneous pulse frequency characteristic parameter [158*Q] ±5%
| Flow rate (L/MIN) | 0.2 | 0.5 | 0.7 | 1.0 | 1.2 |
| Reference parameters (Hz) | 31.6 | 79.0 | 110.6 | 158.0 | 189.6 |
Cumulative pulse flow characteristic parameters
| Flow rate (L/MIN) | 0.5 | 0.7 | 1.0 | 1.2 |
| g/Pulse | 0.1073 | 0.1032 | 0.1039 | 2.1033 |
| Pulse/L | 9332 | 9699 | 9637 | 9685 |
(Note: Specific data may have slight errors due to actual working conditions. Please refer to actual tests for accuracy.)
VI. Installation Instructions
- Water inlet direction:Please strictly follow the indicator arrow (water inlet direction) on the sensor housing for installation to ensure the water flow direction is correct.
- Installation requirements:The sensor should be avoided in environments with strong magnetic fields or direct sunlight. Pipe connections must be properly sealed to prevent leaks.
