I. Product Overview

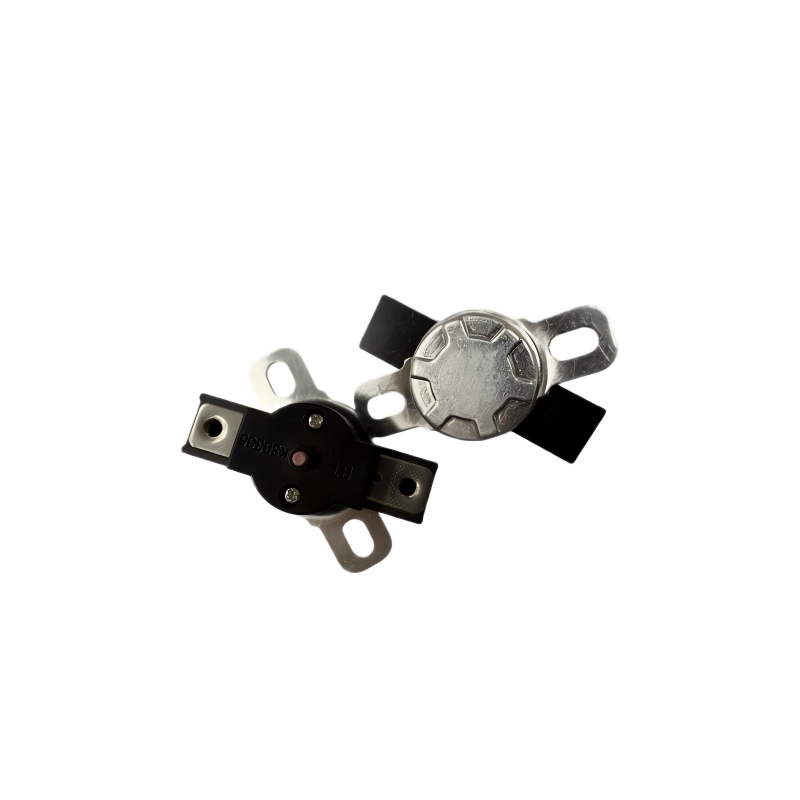

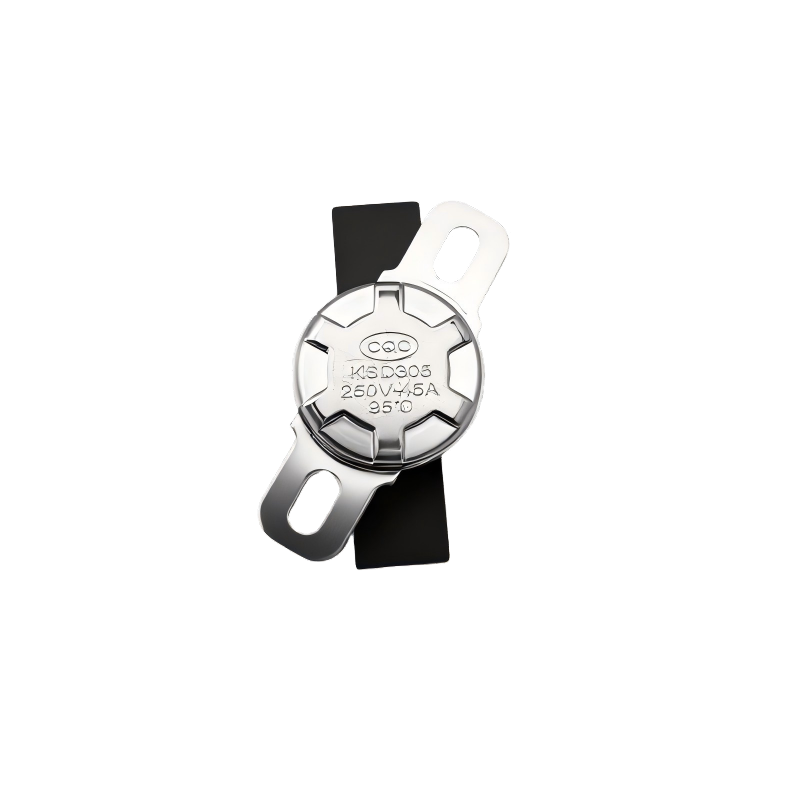

The KSD305 series thermostat is a 3/4-inch bimetallic snap-action disc thermostat that uses a temperature-sensitive bimetallic disc to achieve rapid contact action. When the temperature reaches the preset value, the bimetallic disc snaps instantaneously, causing the contacts to quickly connect or disconnect the circuit through a mechanism, thus providing safety protection or temperature control for electrical appliances.
This product offers three optional configurations: automatic reset, manual reset, and single-action fuse (one-time protection), which can flexibly adapt to the safety and control needs of different application scenarios.
II. Product Features and Advantages
- Rapid disconnection technology: It adopts the principle of bimetallic disc snap-action, which can separate the contacts at a very fast speed and effectively reduce arc erosion.
- High load and long life: It has excellent electrical life characteristics under 250VAC / 35A and 45A load conditions.
- Multiple installation configurations: Offers a variety of installation configuration options, including airflow (duct) and surface mount, to adapt to different equipment structures.
- Multiple reset methods are available: automatic reset, manual reset, and single-action fuse type (one-time insurance) are available to meet the requirements of different safety levels and application scenarios.
- Compact design: 3/4-inch diameter disc structure, small size, suitable for space-constrained applications.
III. Application
- Electric water heater
- Dishwasher
- Boiler
- Clothes dryer
- Heater
- Washing machine
- Air conditioning equipment, etc.
IV. Main Technical Parameters
| Parameter Items | Specifications |
| Model | KSD305 |
| Contact structure | Single-Pole Single-Throw (SPST) |
| Reset method | Automatic reset / Manual reset / Single-action fuse (optional) |
| Rated electrical parameters | 250VAC / 35A, 45A |
| Operating temperature range | 50℃ ~ 150℃ (customizable) |
| Operating temperature tolerance | ±3℃ ~ ±5℃ |
| Electrical life | Manual cycle life: ≥3,000 cycles |
| Product Certification | CQC (CQC24002441742) |
V. Installation Method
Installation method: You can choose airflow type (duct installation) or surface mount type installation according to your needs.
Precautions:
- When using surface mount technology, ensure that the temperature sensing surface is in close contact with the controlled surface. If necessary, apply thermal grease.
- Do not deform or collapse the cover during installation, as this may affect performance.
- To prevent electrical leakage, avoid liquid from seeping into the thermostat and ensure that the casing is free of cracks.
